Product Summary
The TEN4-4810 is a DC/DC Converter. The TEN4-4810 is designed for applications requiring very wide operating voltage range. Typical applications of the TEN4-4810 are tele- and data communication systems, mobile battery powered equipments and industrial process control systems with operation from different input voltages i.e. 12/24 VDC or 24/48 VDC battery voltages. High efficiency allows operation up to 75°C without derating. Input filtering accprding to EN 55022-A and FCC, level A. Low output ripple minimise design-in time and cost.
Parametrics
TEN4-4810 absolute maximum ratings: (1)Input voltage range: 18 – 75 VDC; (2)Output voltage: ± 15 VDC; (3)Output current max: 900 mA; (4)Isolation capacity Input/Output: 380 pF typ; (5)Switching frequency: 350 kHz typ. (Pulse frequency modulation PFM).
Features
TEN4-4810 features: (1)Ultra wide 4 : 1 Input Range: 9 – 36 VDC or 18 – 75 VDC; (2)Full SMD-Design; (3)High Efficiency up to 85%; (4)Indefinite Short-Circuit Protection; (5)Reverse Voltage Protection; (6)I/O-isolation 1’500 VDC; (7)Input Filter meets EN 55022, Class A and FCC, Level A without external Components; (8)Shielded Metal Case with insulated Baseplate; (9)24-pin DIP with industry Standard Pinout; (10)MTBF >1 Mio. h; (11)2 Year Product Warranty.

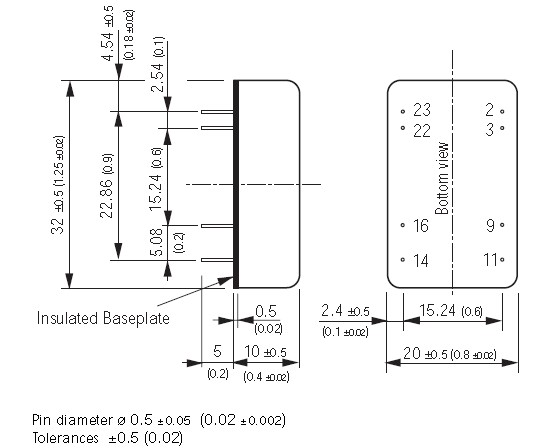

Diagrams
 |
