Product Summary

The TEN4-4811 is a DC/DC Converter. The TEN4-4811 is designed for applications requiring very wide operating voltage range. Typical applications are tele- and data communication systems, mobile battery powered equipments and industrial process control systems with operation from different input voltages i.e. 12/24 VDC or 24/48 VDC battery voltages.

Parametrics

TEN4-4811 absolute maximum ratings: (1)Input current no load /full loa: 20 mA / 400 mA typ; (2)Surge voltage: 50 V max; (3)Reverse voltage protection: 1.0 A max; (4)Voltage set accuracy: ± 1 %; (5)Temperature coefficient: ± 0.02 % / °C.

Features

TEN4-4811 features: (1)Ultra wide 4 : 1 Input Range 9 – 36 VDC or 18 – 75 VDC; (2)Full SMD-Design; (3)High Efficiency up to 85%; (4)Indefinite Short-Circuit Protection; (5)Reverse Voltage Protection; (6)I/O-isolation 1’500 VDC; (7)Input Filter meets EN 55022, Class A and FCC, Level A without external Components; (8)Shielded Metal Case with insulated Baseplate; (9)24-pin DIP with industry Standard Pinout.

Diagrams

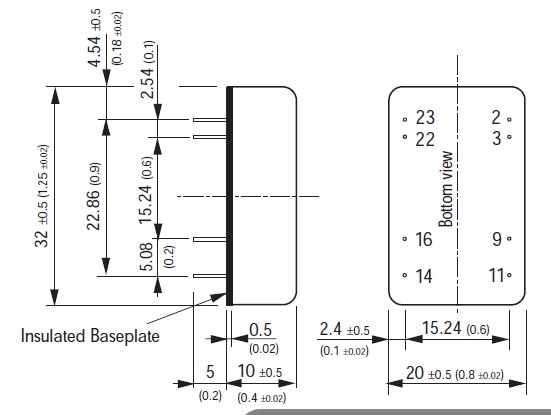

TEN4-4811 block diagram
