Product Summary

The TEN5-2423 is a DC/DC-converter module with wide input range of 2:1. State of the art SMD-technology guarantees a product with very high reliability and good cost /performance ratio. High efficiency allows an operating temperature range of –40℃ to +85℃. I/O-isolation of 1500 VDC together with conducted noise compliance to EN 55022-A and FCC, level A makes the TEN5-2423 ideal for a wide range of applications in communications, mobile battery powered equipments and industrial systems.

Parametrics

TEN5-2423 absolute maximum ratings: (1)Operating Temperature ranges: –40 to +85℃; (2)Case temperature range: +100℃ max; (3)Storage Temperature ranges: –55 to +125℃; (4)Derating: 3.5 %/K above 70℃; (5)Humidity (non condensing): 95 % rel H max; (6)Reliability, calculated MTBF (MIL-HDBK-217F, @ +25℃, ground benign): >1 Mio. h; (7)Isolation voltage (60 sec): 1500 VDC; (8)Isolation capacity: 380 pF typ; (9)Isolation resistance: >1000 M Ohm (500 VDC); (10)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).

Features

TEN5-2423 features: (1)Wide 2:1 input range; (2)Full SMD-design; (3)High efficiency up to 86%; (4)Extended operating temperature range –40 to 85℃; (5)I/O isolation 1500 VDC; (6)Indefinite short circuit protection; (7)Input filter to meet EN 55022, Class A and FCC, level A without external components; (8)Shielded metal case with insulated baseplate; (9)24-pin DIP with industry standard pinout; (10)High reliability, MTBF >1 Mio. h; (11)3-year product warranty.

Diagrams

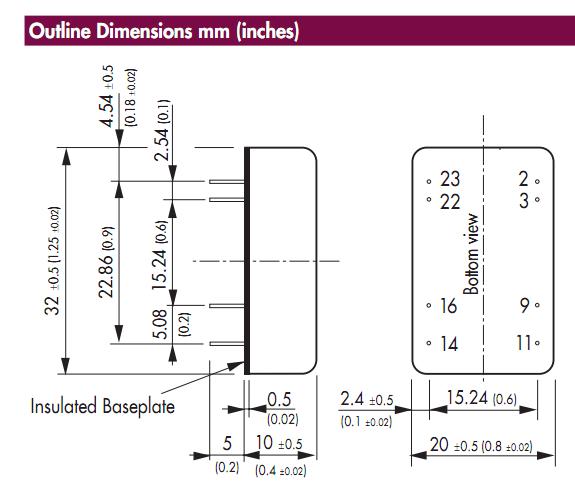

TEN5-2423 dimensions
