Product Summary

The SFH551V is a transimpedance amplifier with digital TTL open collector output stage and integrated photodiode. The active area of the SFH551V in connection with the molded microlens gives an efficient coupling from the end of a plastic fiber. The SFH551V is fully DC coupled and therefore no line code is needed. The applications of the SFH551V include Household electronics, Power electronics, Optical networks.

Parametrics

SFH551V absolute maximum ratings: (1)Operating Temperature Range: -40 to +85鈩? (2)Storage Temperature Range: -40 to +100鈩? (3)Soldering Temperature(2mm from case bottom, t 鈮?5 s): 260鈩? (4)Supply Voltage Range without Damage: -0.5 to 15 V; (5)Recommended and Guaranteed Maximum Voltage: 5.5 V; (6)Minimum Supply Voltage for Function: 4 V; (7)Minimum Pull-up Resistance(VCC = 5 V): 330 惟; (8)Output Voltage: 鈥?.5 to 15 V; (9)Output Current: 50 mA; (10)Power Dissipation (output): 100 mW.

Features

SFH551V features: (1)Bipolar IC with open-collector output; (2)Digital output, TTL compatible; (3)Sensitive in visible and near IR range; (4)Low switching threshold; (5)Transfer rate 鈮?5 Mbit/s; (6)2.2 mm aperture holds standard 1000 micron plastic fiber; (7)No fiber stripping required; (8)Molded microlens for efficient coupling.

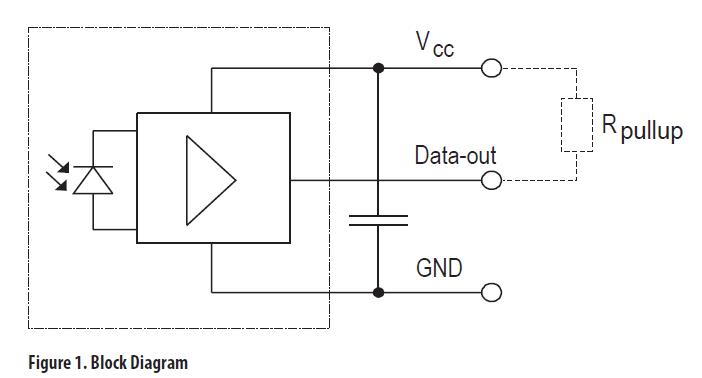

Diagrams
