Product Summary

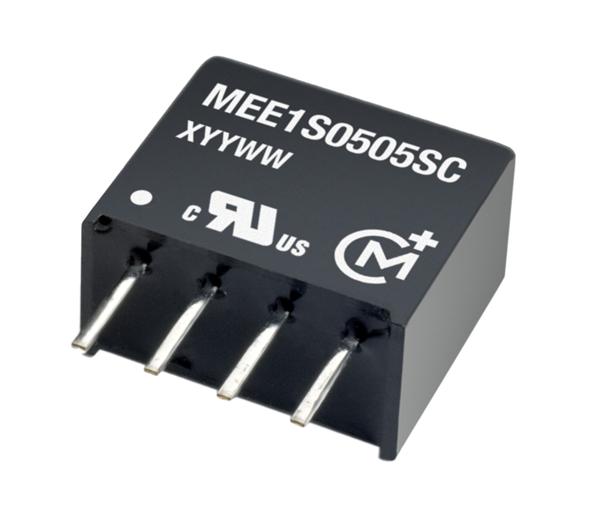

The MEE1 series is the new high performance version of our 1W NME series. The MEE1 series is more efficient and offers improved regulation performance for applications where a wide output voltage variation can not be tolerated. They are ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise.

Parametrics

(1)1kVDC isolation;(2)Wide temperature performance at full 1 watt load, –40°C to 85°C;(3)3.3V, 5V, 12V, 15V & 24V input; (4)3.3V, 5V, 9V, 12V and 15V output

Features

(1)UL60950 recognition pending; (2)Operation to zero load; (3)Single isolated output; (4)1kVDC isolation; (5)Efficiency up to 87% typical; (6)Wide temperature performance at full 1 watt load, –40°C to 85°C; (7)Power density from 1.305W/cm3; (8)Industry standard pinout; (9)3.3V, 5V, 12V, 15V & 24V input; (10)3.3V, 5V, 9V, 12V and 15V output; (11)Custom solutions available; (12)Pin compatible with LME, NME, NKE & NML series; (13)PCB mounting

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012101622218388.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MEE1S0505DC
MEE1S0505DC
Murata Power Solutions
DC/DC Converters 1W 5Vin 5Vout 200mA DIP
Data Sheet
0-1: $4.06
1-5: $4.04
5-10: $4.01
10-25: $3.97
