Product Summary
The TEN3-0521 is a DC/DC Converter. The TEN3-0521 has been designed for a wide range of applications in industrial and communication systems. High efficiency allows an operating temperature range of - 40℃ to +75℃ without derating. Other features of the TEN3-0521 are internal filtering according to EN 55022-A and FCC, level A. Full SMD-design guarantees a high reliability of this product.
Parametrics
TEN3-0521 absolute maximum ratings: (1)Input voltage range: 4.5 – 9.0 VDC; (2)Output voltage: ± 5 VDC; (3)Output current max: ± 250 mA; (4)Isolation capacity Input/Output: 65 pF typ; (5)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).
Features
TEN3-0521 features: (1)Wide 2 : 1 Input Range; (2)High Efficiency up to 84%; (3)Full SMD-Design; (4)Indefinite Short-Circuit Protection; (5)I/O-Isolation 1500 VDC; (6)Input Filter to meet EN 55022, Class A and FCC, Level A without external Components; (7)24-pin DIP with industry Standard Pinout; (8)High Reliability, MTBF >1.1 Mio. h; (9)2 Year Product Warranty.

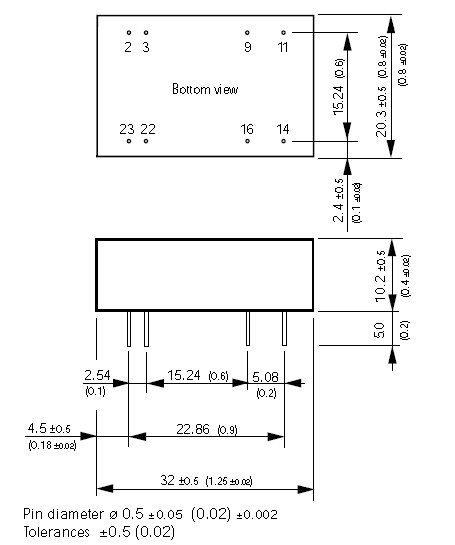

Diagrams
 |
