Product Summary

The TEN5-4811 is a DC/DC Converter. State of the art SMD-technology guarantees a product with very high reliability and good cost /performance ratio. High efficiency of the TEN5-4811 allows an operating temperature range of -40℃ to +85℃ without derating. I/O-isolation of 1500 VDC together with conducted noise compliance to EN 55022-A and FCC, level A makes the TEN5-4811 ideal for a wide range of applications in communications, mobile battery powered equipments and industrial systems.

Parametrics

TEN5-4811 absolute maximum ratings: (1)Input voltage range: 36 – 75 VDC; (2)Output voltage: 5 VDC; (3)Output current max:1000 mA; (4)Isolation capacity Input/Output: 380 pF typ; (5)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).

Features

TEN5-4811 features: (1)Wide 2:1 Input Range; (2)Full SMD-Design; (3)High Efficiency up to 86%; (4)Extended Operating Temperature; (5)Range -40℃ to 85℃; (6)I/O-isolation 1500 VDC; (7)Indefinite Short-Circuit Protection; (8)Input Filter meets EN 55022, Class A and FCC, Level A without external Components; (9)Shielded Metal Case with insulated Baseplate; (10)24-pin DIP with Industry Standard Pinout; (11)High Reliability, MTBF >1 Mio. h; (12)3 Year Product Warranty.

Diagrams

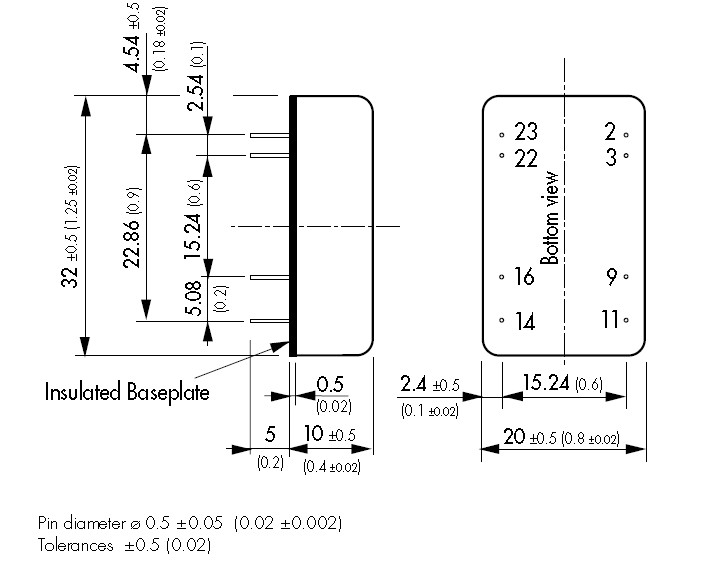

TEN5-4811 Dimmension
