Product Summary

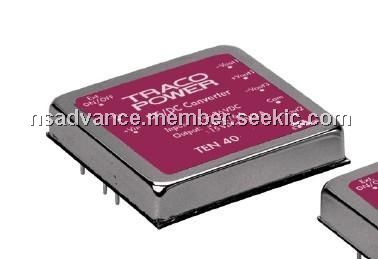

The TEN40-1213N is a high performance dc-dc converter module. Due to the very high effciency of up to 92% these 40 W converters come with a footprint of only 1.0” x 2.0”. The 15 models have a wide 2:1 input voltage range and a tight output voltage regulation. Typical applications of the TEN40-1213N are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.
Parametrics
TEN40-1213N absolute maximum ratings: (1)Operating Temperature ranges– 40 °C to + 80 °C ; (2)Case Temperature ranges: + 105 °C max. ; (3)Storage Temperature ranges: -50 °C to + 125 °C; (4)Humidity (non condensing): 95 % rel H max.; (5)Reliability, calculated MTBF (MIL-HDBK-217F, at +25°C, ground benign): 328’000 h; (6)Isolation voltage (60 sec.)–Input/Output: 1500 VDC; (7)Isolation capacitance–Input/Output: 1500 pF typ.; (8)Isolation resistance– Input/Output: >1000 Mohm; (9)Switching frequency (fixed): 320 kHz typ. (pulse width modulation PWM); (10)Altitude during operation: 5‘000 m max. (16‘400 f t ) approved.
Features
TEN40-1213N features: (1)Highest power density: 40 W in 1” x 2” x 0.4” package; (2)Excellent effciency up to 92 %; (3)Output voltage adjustable; (4)Remote On/Off; (5)Short circuit protection; (6)Over voltage protection; (7)I/O isolation 1500 VDC; (8)Input flter meets EN 55022, class A and FCC, level A without external components; (9)Operating temperature range –40°C to +80°C; (10)Fully RoHS compliant; (11)3-year product warranty.

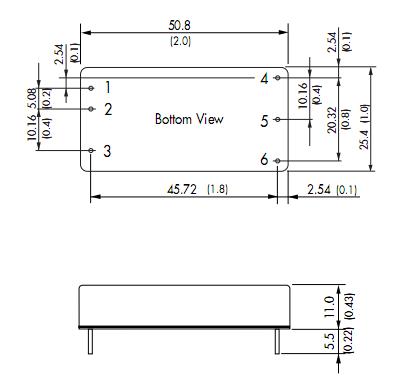

Diagrams
 |
 TEN40-1210 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1211 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1212 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1220 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1222 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1223 |
Other |
|
Data Sheet |
Negotiable |
|
||||
