Product Summary

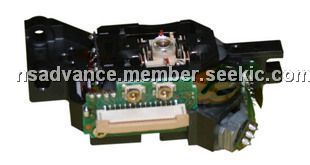

The HOP1200W is an Optical Pickup for DVD-ROM Drive.

Parametrics

HOP1200W electrical performances: (1)Reverse voltage: 2.0 V; (2)Light output power: 7 mW; (3)Operating voltage: 2.3 V typ; (4)Operating current: 20 mA typ; (5)Monitor current: 40 渭A typ.

Features

HOP1200W optical Performances: (1)Objective Lens: 3.05 mm; (2)Focal distance: 0.6; (3)Working distance: 1.64mm; (4)Objective emission light: 0.15 mW; (5)Emission light power: 0.5 mW; (6)Wavelength: 655 nrn卤15 nm.

Diagrams

<IMG border=0 alt="HOP1200W connection diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201252232929470.jpg">
