Product Summary

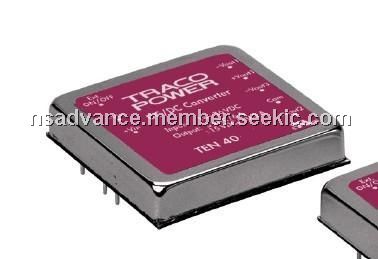

The TEN40-4832 is a high performance 40W dc-dc converter module featuring 30 standard models with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of –40°C to 85°C. Typical applications of the TEN40-4832 are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.
Parametrics
TEN40-4832 absolute maximum ratings: (1)Operating Temperature ranges– 40 °C to + 85 °C ; (2)Case Temperature ranges: + 100 °C max. ; (3)Storage Temperature ranges: -55 °C to + 125 °C; (4)Humidity (non condensing): 95 % rel H max.; (5)Reliability, calculated MTBF (MIL-HDBK-217 E): > 510’000 h @ + 25 °C; (6)Isolation (Input/Output): Voltage: 1‘500 VDC, Capacity: 1000 pF max., Resistance: > 1‘000 M Ohm; (7)Remote On/Off: On:3.5 to 12 VDC or open circuit, Off:0 to 1.2 VDC or short circuit pin 3 and pin 2, Off idle current: 2.5 mA max.; (8)Switching frequency (fixed): 300 kHz typ. (Pulse width modulation PWM); (9)Vibration: 10-55Hz, 2G, 30 minutes along X,Y,Z.
Features
TEN40-4832 features: (1)High Power Density: 40W in a 51x51x10mm (2”x2”x0.4”) Package; (2)Wide 2:1 Input Voltage Range; (3)Models with Single-, Dual- and Triple Output; (4)Models with 2 independently regulated 3.3 and 5.0 VDC Outputs; (5)Extended Operating Temperature Range: –40°C to +85°C; (6)Over Temperature Protection; (7)Under Voltage Lockout; (8)Remote On/Off; (9)Shielded metal Case with insulated Baseplate; (10)Optional Heatsink; (11)Lead free Design - RoHS compliant; (12)3 Years Product Warranty.

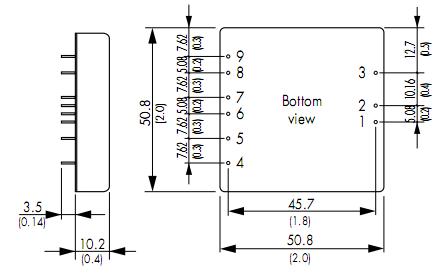

Diagrams
 |
 TEN40-1210 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1211 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1212 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1220 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1222 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN40-1223 |
Other |
|
Data Sheet |
Negotiable |
|
||||
