Product Summary
The TEN3-0510 is a DC/DC Converter. The TEN3-0510 has been designed for a wide range of applications in industrial and communication systems. High efficiency allows an operating temperature range of - 40℃ to +75℃ without derating. Other features of the TEN3-0510 are internal filtering according to EN 55022-A and FCC, level A. Full SMD-design guarantees a high reliability of this product.
Parametrics
TEN3-0510 absolute maximum ratings: (1)Input voltage range: 4.5 – 9.0 VDC; (2)Output voltage: 3.3 VDC; (3)Output current max: 600 mA; (4)Isolation capacity Input/Output: 65 pF typ; (5)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).
Features
TEN3-0510 features: (1)Wide 2 : 1 Input Range; (2)High Efficiency up to 84%; (3)Full SMD-Design; (4)Indefinite Short-Circuit Protection; (5)I/O-Isolation 1500 VDC; (6)Input Filter to meet EN 55022, Class A and FCC, Level A without external Components; (7)24-pin DIP with industry Standard Pinout; (8)High Reliability, MTBF >1.1 Mio. h; (9)2 Year Product Warranty.

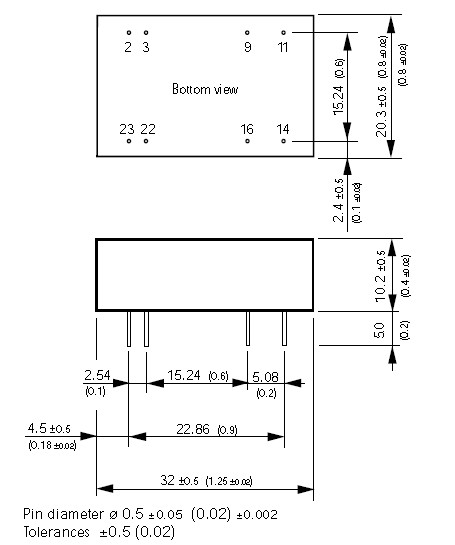

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TEN3-0510 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TEN30-2408WI |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN30-4808 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN3-0510 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN30WI |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TEN3-1211 |
Other |
|
Data Sheet |
Negotiable |
|
||||
