Product Summary

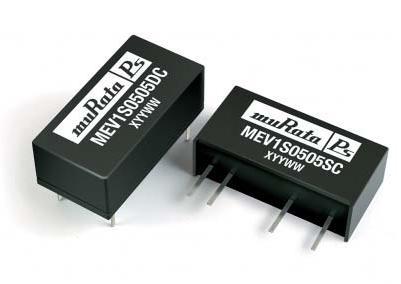

The MEV series is the new high performance version of our 1W NMV series. The MEV series is more efficient and offers improved regulation performance from 1.8% for applications where a wide output voltage variation can not be tolerated. They are ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switch ing noise. The MEV series is currently available in an industry SIP 7 or DIP 14 package.

Parametrics

(1)Wide temperature performance at full 1 Watt load, -40°C to 85°C;(2)5V, 12V, 15V, 24V, & 48V inputs; (3)5V, 9V, 12V, & 15V output;

Features

(1)UL 60950 Recognized; (2)RoHS compliant; (3)Efficiency to 89% (Typ.); (4)Power density to 0.85W/cm3; (5)Wide temperature performance at full 1 Watt load, -40°C to 85°C; (6)UL 94V-0 package material; (7)No heatsink required; (8)Industry standard pinout; (9)3kVDC isolation (1 minute); (10)5V, 12V, 15V, 24V, & 48V inputs; (11)5V, 9V, 12V, & 15V output; (12)Fully encapsulated with toroidal magnetics; (13)No external components required; (14)No electrolytic or tantalum capacitors

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012101722433351.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MEV1S1512SC
MEV1S1512SC

Murata Power Solutions

DC/DC Converters DC/DC TH 1W 15-12V SIP Single

Data Sheet

0-1: $5.26
1-5: $5.13
5-10: $5.05
10-25: $4.97
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MEV1D0505DC
MEV1D0505DC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-5Vout +/-100mA DIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
MEV1D0505SC
MEV1D0505SC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-5Vout +/-100mA SIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
MEV1D0509DC
MEV1D0509DC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-9Vout +/-56mA DIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
MEV1D0509SC
MEV1D0509SC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-9Vout +/-56mA SIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
MEV1D0512DC
MEV1D0512DC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-12Vout +/-42mA DIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
MEV1D0512SC
MEV1D0512SC

Murata Power Solutions

DC/DC Converters 1W 5Vin +/-12Vout +/-42mA SIP

Data Sheet

0-1: $5.26
1-5: $5.23
5-10: $5.19
10-25: $5.14
