Product Summary

The MEV3 series is a new range of high performance 3W DC/DC converters, offering 3W of available output power in a previously rated 2W package capable of operation over the full industrial temperature range of -40oC to 85oC. Available in an industry standard SIP package, with a pin compatible power upgrade path from the 1W NMV/MEV and 2W NMK series’, they are ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation.

Parametrics

(1)Wide temperature performance at full 3 Watt load, -40°C to 85°C;(2)3kVDC isolation; (3)5V & 12V input; (4)5V, 9V, 12V, & 15V output;

Features

(1)UL 60950 recognised; (2)RoHS compliant; (3)Typical efficiency from 83%; (4)Power density 1.9W/cm3; (5)Wide temperature performance at full 3 Watt load, -40°C to 85°C; (6)UL 94V-0 package material; (7)No heatsink required; (8)Industry standard pinout; (9)3kVDC isolation (1 minute); (10)5V & 12V input; (11)5V, 9V, 12V, & 15V output; (12)Fully encapsulated with toroidal magnetics; (13)No external components required; (14)No electrolytic or tantalum capacitors

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012101724523656.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

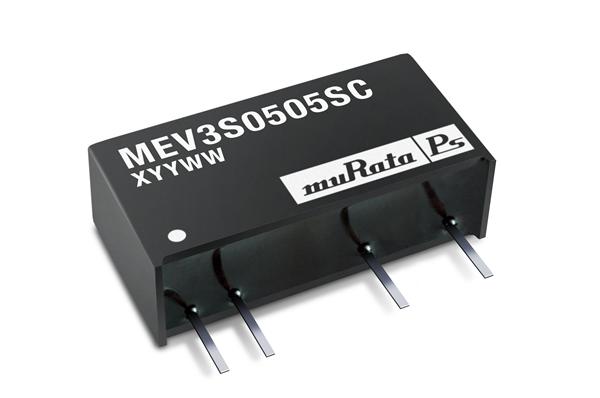

MEV3S0505SC
MEV3S0505SC
Murata Power Solutions
DC/DC Converters 3W 5V to 5V 600mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MEV3S0505SC
MEV3S0505SC
Murata Power Solutions
DC/DC Converters 3W 5V to 5V 600mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
MEV3S0509SC
MEV3S0509SC
Murata Power Solutions
DC/DC Converters 3W 5V to 9V 333mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
MEV3S0512SC
MEV3S0512SC
Murata Power Solutions
DC/DC Converters 3W 5V to 12V 250mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
MEV3S0515SC
MEV3S0515SC
Murata Power Solutions
DC/DC Converters 3W 5V to 15V 200mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
MEV3S1205SC
MEV3S1205SC
Murata Power Solutions
DC/DC Converters 3W 12V to 5V 600mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
MEV3S1209SC
MEV3S1209SC
Murata Power Solutions
DC/DC Converters 3W 12V to 9V 333mA 3kVDC isolation
Data Sheet
0-1: $8.12
1-5: $8.08
5-10: $8.03
10-25: $7.94
