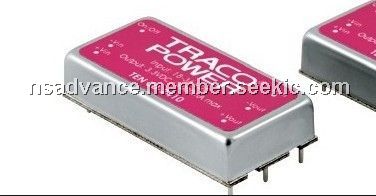

Product Summary

The TEN 30WIN series is a family of high performance 30W dc-dc converter
modules featuring ultra wide 4:1 input voltage ranges in a compact low profile case with industry-standard footprint. Standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout, over temperature and short circuit protection.
Typical applications for these products are battery operated equipment and
distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.

Parametrics

(1)Temperature ranges 鈥?Operating 鈥?0 掳C to +75 掳C; (2)鈥?Case temperature +105 掳C max.; (3)鈥?Storage 鈥?5 掳C to +125 掳C; (4)Derating 3.5 %/K above 60 掳C; (5)Humidity (non condensing) 95 % rel. H max.; (6)Thermal inpedance 鈥?Natural convection 12 掳C/W; (7)鈥?Natural convection with heat sink 10 掳C/W; (8)Reliability, calculated MTBF single- and dual output models: 435鈥?00 h; (9)(MIL-HDBK-217F, @ 25掳C, ground benign) triple output models: 320鈥?00 h; (10)Isolation voltage (60 sec) 鈥?Input / Output 1500 VDC; (11)Isolation resistance 鈥?Input / Output >1000 M Ohm; (12)Isolation capacity 鈥?Input / Output 1500 pF max.; (13)Remote On/Off 鈥?On: 3.0 to 12 VDC or open circuit.; (14)鈥?Off: 0 to 1.2 VDC or short circuit pin 3 and pin 2; (15)鈥?Off idle current: 3 mA max.; (16)Switching frequency (pulse width modulation PWM) single- and dual output models: 430 kHz typ.; (17)triple output models: 400 kHz typ.; (18)Vibration and thermal shock MIL-STD-810E; (19)Safety standards UL 60950-1, EN 60950-1, IEC 60950-1; (20)Safety approvals UL /cUL file pending

Features

(1) Smallest encapsulated 30 W converter; (2) 2鈥?x 1鈥?x 0.4鈥?shielded metal package; (3) Ultra wide 4:1 input voltage range; (4) Single- dual- and triple output models; (5) Very high efficiency up to 91%; (6) Operating temp. range 鈥?0 掳C to +75 掳C; (7) I/O isolation 1500 VDC; (8) Over temperature and short circuit protection; (9) Remote On/Off; (10) Adjustable output voltage

TEN30-2408WI
TEN30-2408WI
Other

Data Sheet
Negotiable
TEN30-4808
TEN30-4808
Other

Data Sheet
Negotiable
TEN3-0510
TEN3-0510
Other

Data Sheet
Negotiable
TEN30WI
TEN30WI
Other

Data Sheet
Negotiable
TEN3-1211
TEN3-1211
Other

Data Sheet
Negotiable
