Product Summary
The TEN3-2421 is a DC/DC Converter. The TEN3-2421 has been designed for a wide range of applications in industrial and communication systems. High efficiency of the TEN3-2421 allows an operating temperature range of - 40℃ to +85℃. Other features of the TEN3-2421 are internal filtering according to EN 55022-A and FCC, level A. Full SMD-design guarantees a high reliability of this product.
Parametrics
TEN3-2421 absolute maximum ratings: (1)Input voltage range: 18 – 36 VDC; (2)Output voltage: 12 VDC; (3)Output current max: 250 mA; (4)Isolation capacity Input/Output: 65 pF typ; (5)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).
Features
TEN3-2421 features: (1)Wide 2 : 1 Input Range; (2)High Efficiency up to 84%; (3)Full SMD-Design; (4)Short-Circuit Protection; (5)Extended Operating Temperature Range -40℃ to 85℃; (6)I/O-Isolation 1500 VDC; (7)Input Filter to meet EN 55022, Class A and FCC, Level A without external Components; (8)24-pin DIP with Industry Standard Pinout; (9)High Reliability, MTBF >1.1 Mio. h; (10)3 Year Product Warranty.

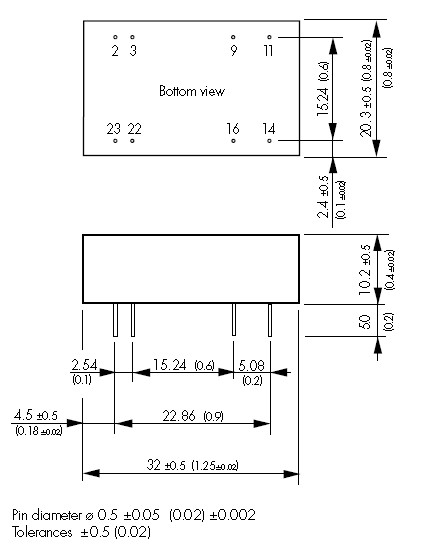

Diagrams
 |
