Product Summary
The TEN3-4823 is a dc-dc converter. The TEN3-4823 has been designed for a wide range of applications in industrial and communication systems. High ef-ficiency allows an operating temperature range of - 40°C to +85°C. Other features of the TEN3-4823 are internal filtering according to EN 55022-A and FCC, level A. Full SMD-design guarantees a high reliability of this product.
Parametrics
TEN3-4823 absolute maximum ratings: (1)Operating Temperature ranges:- 40°C to +75°C (no derating); (2)Case Temperature ranges: +95°C max.; (3)Storage Temperature ranges: -40°C to +125°C; (4)Humidity (non condensing):95 % rel H max.; (5)Reliability, calculated MTBF (MIL-HDBK-217 E): >1.1 Mio. h @ +25°C; (6)solation voltage Input/Output: 1’500 VDC; (7)solation capacity Input/Output: 65 pF typ; (8)solation resistance Input/Output (500 VDC): > 1‘000 M Ohm; (9)Switching frequency: 300 kHz typ. (Pulse frequency modulation PFM).
Features
TEN3-4823 features: (1)Wide 2 : 1 Input Range; (2)High Efficiency up to 84%; (3)Full SMD-Design; (4)Indefinite Short-Circuit Protection; (5)I/O-Isolation 1’500 VDC; (6)Input Filter to meet EN 55022, Class A and FCC, Level A without external Components; (7)24-pin DIP with industry Standard Pinout; (8)High Reliability, MTBF >1.1 Mio. h; (9)2 Year Product Warranty.

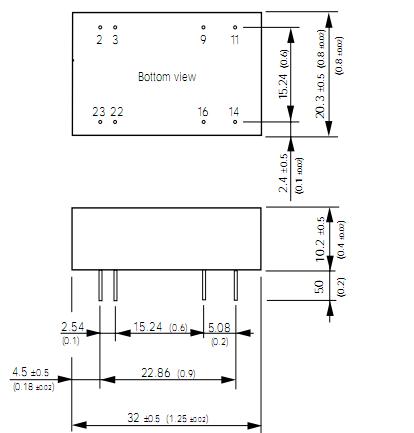

Diagrams
 |
