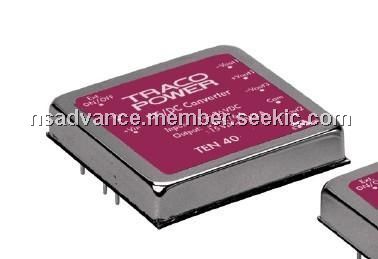

TEN40-4813

Product Summary

The TEN 40 series is a family of high performance 40W dc-dc converter modules featuring 30 standard models with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of 鈥?0掳C to 85掳C. Built-in filters for both input and output minimizes the need for external filtering. Further standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout and short circuit protection.
Typical applications for these products are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.

Parametrics

(1)Temperature ranges 鈥?Operating 鈥?40 掳C ... + 85 掳C; (2)鈥?Case temperature + 100 掳C max.; (3)鈥?Storage 鈥?55 掳C ... + 125 掳C; (4)Derating see graphs on page 3 to 5; (5)Humidity (non condensing) 95 % rel H max.; (6)Reliability, calculated MTBF (MIL-HDBK-217 E) > 510鈥?00 h @ + 25 掳C; (7)Isolation (Input/Output) 鈥?Voltage 1鈥?00 VDC; (8)鈥?Capacity 1000 pF max.; (9)鈥?Resistance > 1鈥?00 M Ohm; (10)Remote On/Off 鈥?On: 3.5 ... 12 VDC or open circuit.; (11)鈥?Off: 0 ... 1.2 VDC or short circuit pin 3 and pin 2; (12)鈥?Off idle current: 2.5 mA max.; (13)Switching frequency (fixed) 300 kHz typ. (Pulse width modulation PWM); (14)Vibration 10-55Hz, 2G, 30 minutes along X,Y,Z; (15)Safety standards UL 1950, EN 60950, IEC 60950 compliance; (16)up to 60 VDC input voltage (SELV limit); (17)Safety approvals UL /cUL File E 188913

Features

(1) High Power Density: 40W in a 51x51x10mm (2鈥漻2鈥漻0.4鈥? Package; (2) Wide 2:1 Input Voltage Range; (3) Models with Single-, Dual- and Triple Output; (4) Models with 2 independently regulated 3.3 and 5.0 VDC Outputs; (5) Extended Operating Temperature Range: 鈥?0掳C to +85掳C; (6) Over Temperature Protection; (7) Under Voltage Lockout; (8) Remote On/Off; (9) Shielded metal Case with insulated Baseplate; (10) Optional Heatsink; (11) Lead free Design - RoHS compliant
